Sonic acoustic walls

Industrial noise barriers built for scale, performance and durability

Contact our team Download catalogue
Home > AcousTech Products > Sonic acoustic walls
Sonic acoustic noise wall for blower noise
Play

  • Backed by the Science of Silence

    Engineers specify Sonic acoustic walls for their scalable, relocatable format and NATA-verified acoustic performance across industrial and infrastructure sites.

    Download catalogue
    AcousTech Sonic System Acoustic Modular Panel Information Pack_Cover

Key Applications

  • BESS and Data centres
  • Construction site boundaries and temporary noise barriers
  • Industrial site perimeter noise control
  • Mining and tunnelling operations
  • Power stations and substations
  • Wastewater treatment facilities
  • Transport corridors and logistics zones
  • Pump station and generator enclosures
  • Heavy manufacturing operations
  • Large-scale infrastructure projects

Performance

Sonic acoustic walls use Sonic System acoustic modular panels tested in NATA-accredited laboratories to AS ISO 354 (sound absorption) and AS 1191-2002 with Rw determined to AS/NZS ISO 717.1.

Performance V50 panel V100 panel
Sound reduction (Rw) 31dB 37dB
Sound absorption (NRC) 1.00 1.10
Peak absorption (αs) 1.18 1.14
Panel thickness 50mm 100mm
Fire resistance (FRL) -/120/- -/120/-



Sound absorption coefficients (αs) by octave band

Frequency (Hz) V50 V100
125 0.24 0.63
250 0.73 1.13
500 1.18 1.14
1000 1.10 1.11
2000 1.06 1.09
4000 1.01 1.00

Tested to AS ISO 354. Values taken from NATA-accredited test reports for each panel.

Structural performance – wind load

Sonic acoustic walls are load-tested and engineering-assessed in accordance with AS 1170.2. The maximum ultimate wind load pressure varies with the panel type and support spacing.

V50 panel

Panel support centres Maximum ultimate wind load pressure
0.9m 6.0 kPa
1.2m 6.0 kPa
1.5m 6.0 kPa
1.8m 4.3 kPa
2.1m 3.1 kPa
2.4m 2.4 kPa
2.7m 1.9 kPa

Ultimate wind load pressures shown; not applicable to cyclonic wind regions.

V100 panel

Panel support centres Maximum ultimate wind load pressure
4.0m 2.58 kPa
4.5m 2.04 kPa
5.0m 1.65 kPa
5.5m 1.36 kPa
6.0m+ 1.15 kPa

Certified loading pressure test reports available on request.

Construction

  • Solid external steel face for barrier performance and visual continuity
  • Perforated internal steel face for sound absorption
  • High-density Rockwool core
  • Interlocking modular panel system with screwless assembly
  • Fire resistance level FRL -/120/- (AS 1530.4-2014)
  • Corrosion-resistant construction with epoxy primer and painted finish
  • Available in 50mm (V50) or 100m (V100) panel thicknesses
  • Optional personnel access doors, vision panels and ventilation

Testing & Compliance

Product Testing and compliance
V50 Sound absorption tested to AS ISO 354. Sound transmission loss tested to AS 1191-2002, with Rw determined to AS/NZS ISO 717.1. Structural performance load tested and engineering-assessed to AS 1170.2. Fire resistance tested to AS 1530.4-2014 (Sections 1, 2 and 3), achieving FRL -/120/-. Reaction to fire tested to AS 1530.1 and AS/NZS 1530.3. All testing is conducted by NATA-accredited laboratories.
V100 Sound absorption tested to AS ISO 354. Sound transmission loss tested to AS 1191-2002, with Rw determined to AS/NZS ISO 717.1. Structural performance load tested and engineering-assessed to AS 1170.2. Fire resistance tested to AS 1530.4-2014, achieving FRL -/120/- for panel integrity when tested as an isolated element. Reaction to fire tested to AS 1530.1 and AS/NZS 1530.3. All testing is conducted by NATA-accredited laboratories.

Full test certificates available upon request.

How To Specify

Category Specification
System Sonic acoustic wall using Sonic System acoustic modular panel V50 or V100
Construction 50mm (V50) or 100mm (V100) acoustic panel with solid external steel face, perforated internal face (38% open area) and high-density Rockwool core
Finish Corrosion-resistant steel with epoxy primer and painted finish. Custom colours available
Acoustic performance V50: Rw 31dB, NRC 1.00 | V100: Rw 37dB, NRC 1.10
Fire rating FRL -/120/- (AS 1530.4-2014)
Structural Load tested and engineering-assessed to AS 1170.2.
Installation Interlocking modular system, permanent or temporary
Options Personnel access doors, vision panels, ventilation, frequency-specific acoustic tuning, corrosion and graffiti-resistant finishes

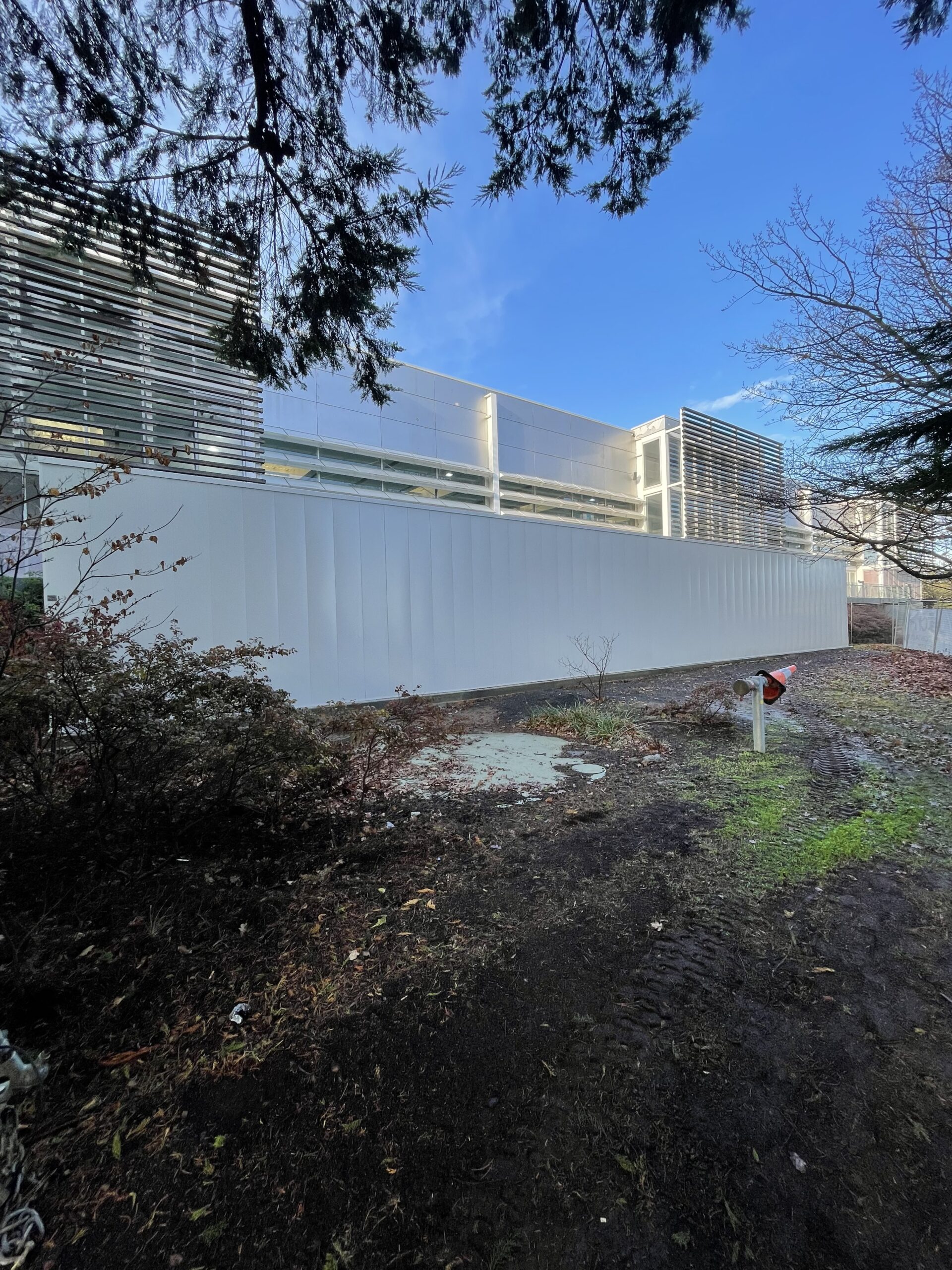

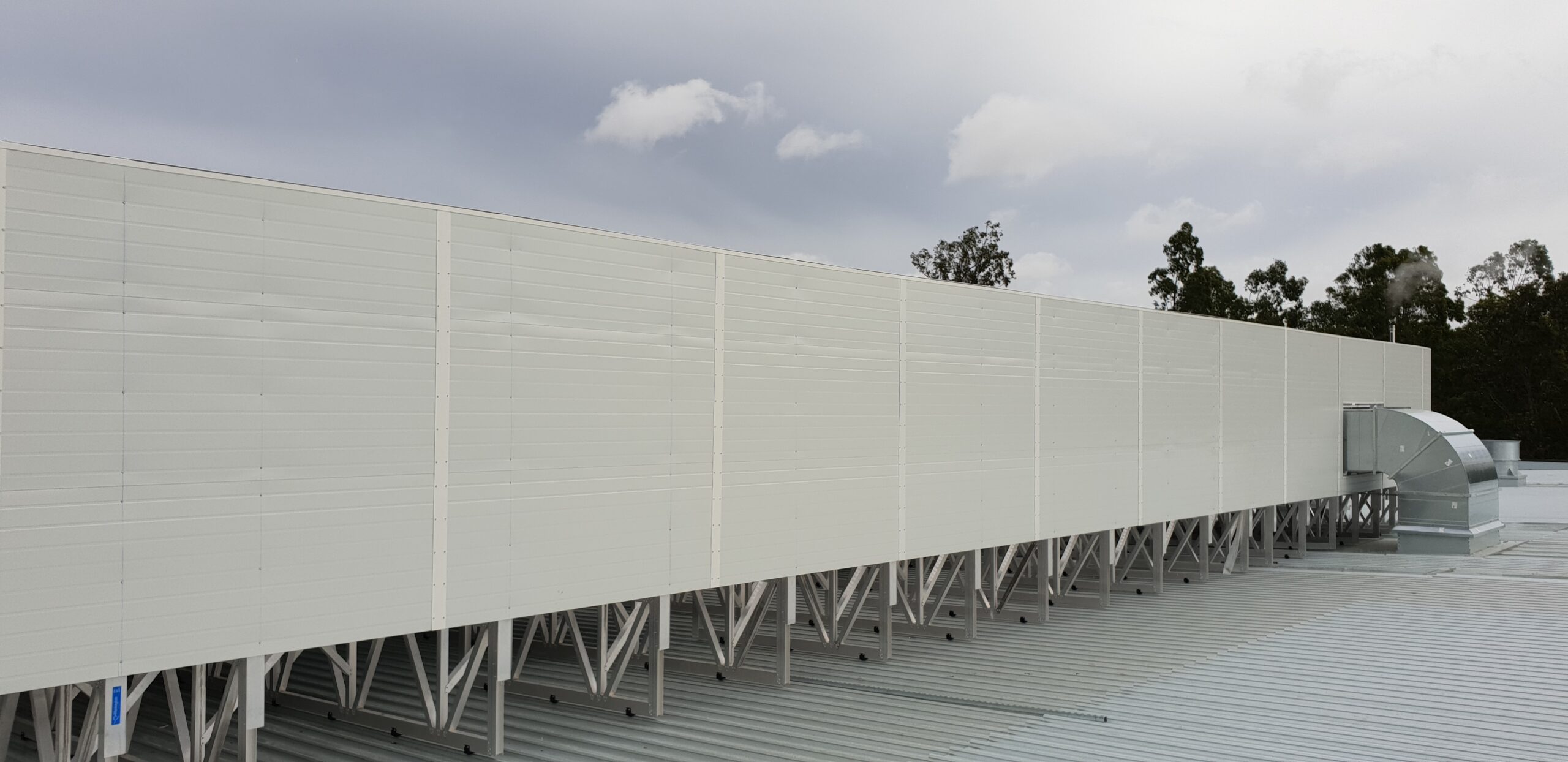

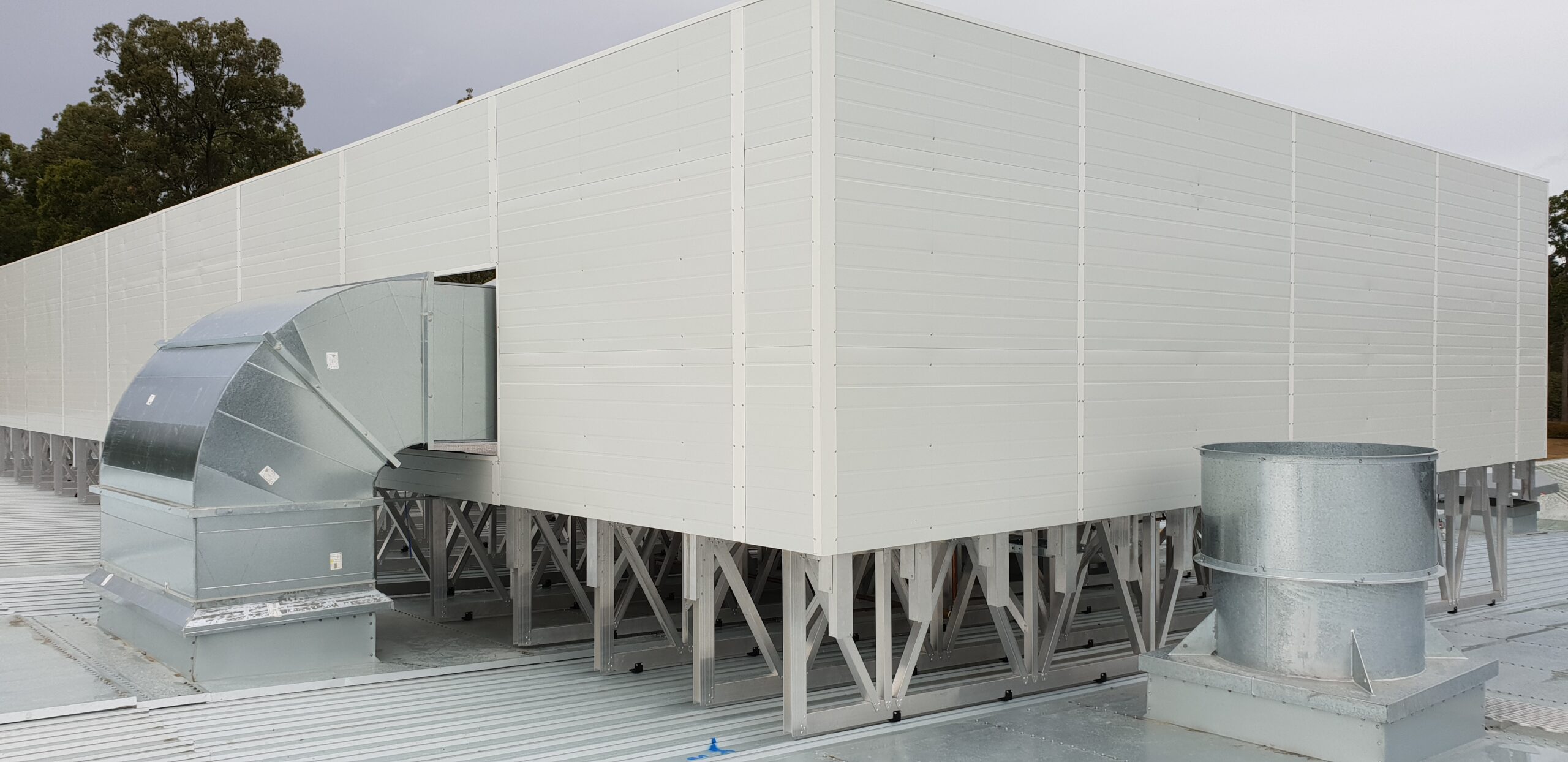

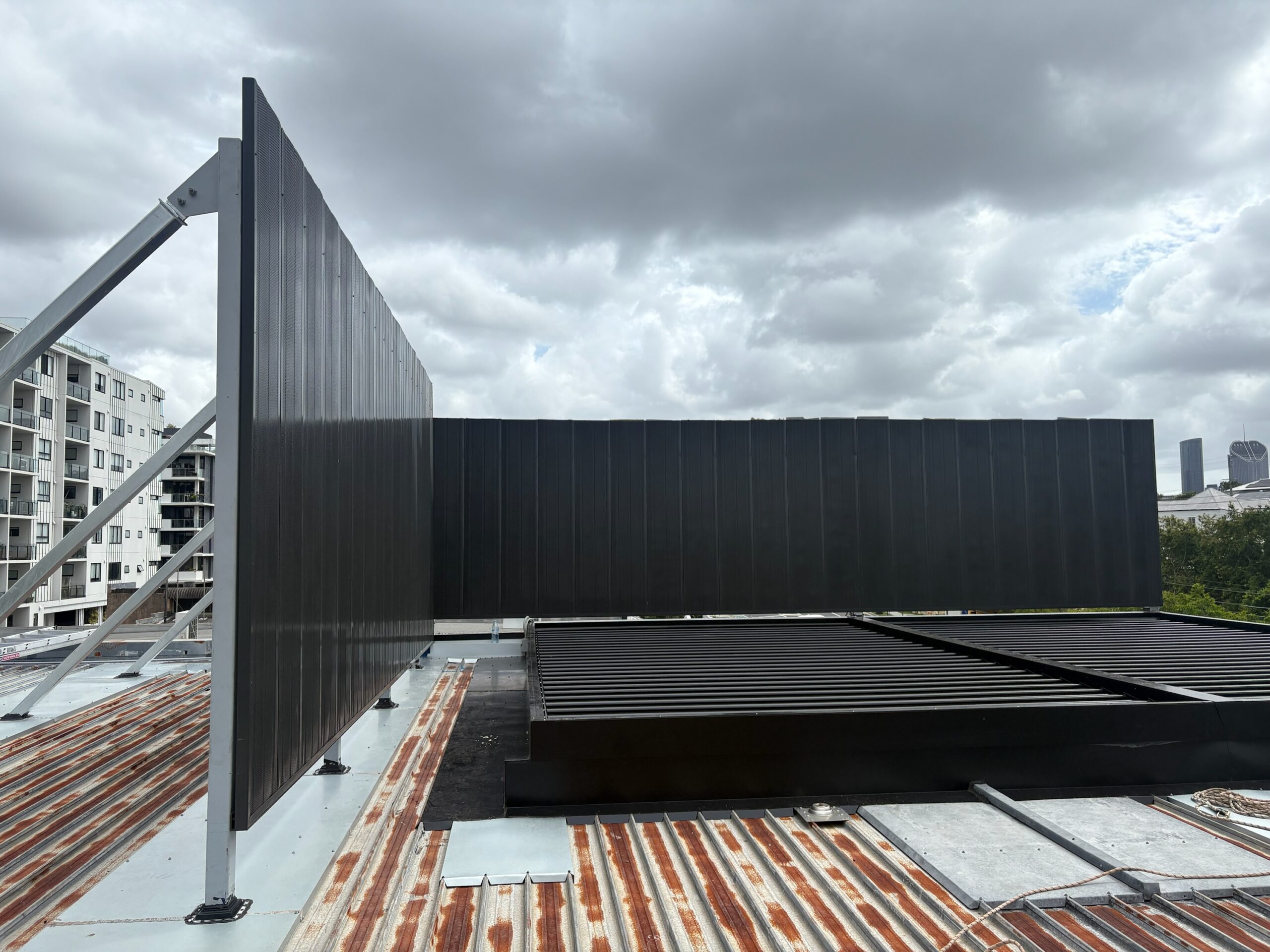

Photo & Video Gallery

Bringing silence to these brands
seq water logo
cs energy logo
arete logo
pensar logo
evolution mining logo
glencore logo
john holland logo
downer logo

Resources

All Resources
  • AcousTech product catalogue
    Learn More
  • Sonic System acoustic modular panel-V50 datasheet
    Sonic System acoustic modular panel-V50 datasheet
    Learn More
  • HVAC noise control for plant rooms and building services
    HVAC noise control for plant rooms and building services
    Learn More

Frequently Asked Questions

  • Industrial Sonic Acoustic Walls are specialised barriers designed to absorb or block sound, primarily used in industrial settings to reduce noise pollution generated by machinery, equipment and industrial processes.

  • Industrial Sonic Acoustic Walls help create safer and more comfortable working environments by significantly reducing noise levels, protecting workers from potential hearing damage, and minimising disturbances to nearby communities.

  • Industrial Sonic Acoustic Walls are commonly used in manufacturing facilities, power plants, oil and gas installations, transportation infrastructure, warehouses, wastewater treatment plants, and mining sites to mitigate noise pollution and comply with regulatory requirements.

  • Industrial Sonic Acoustic Walls work by strategically placing soundproof barriers between noise sources and receivers. They effectively absorb or block sound waves to reduce noise transmission and minimise its impact on surrounding areas.

  • Industrial Sonic Acoustic Walls can be constructed using robust materials such as concrete, metal, fibreglass, or specialised soundproofing panels designed to withstand harsh industrial conditions and provide optimal noise reduction.

  • Factors to consider include noise levels, frequency range, space constraints, regulatory requirements, environmental conditions, installation ease, and budgetary considerations specific to industrial applications.

  • Maintenance requirements for industrial acoustic walls depend on the materials used and environmental conditions. Regular inspections and cleaning may be necessary to ensure optimal performance and durability in industrial settings.

  • Yes, industrial acoustic walls can be customised in size, shape, material, and acoustic performance to meet each industrial facility’s unique noise control needs, ensuring effective noise reduction and compliance with regulations.

  • Industrial acoustic walls can contribute to environmental sustainability by reducing noise pollution and minimising the impact of industrial activities on surrounding communities, promoting a healthier and more livable environment.

  • No, AcousTech industrial Sonic Acoustic Walls are specifically designed for industrial applications and may not be suitable for residential use.
