Sonic System acoustic modular panel-VR

The Sonic System VR is a high-performance acoustic roof panel engineered for industrial, commercial, and infrastructure applications requiring sound transmission loss, sound absorption, and weather protection within a single roofing system.

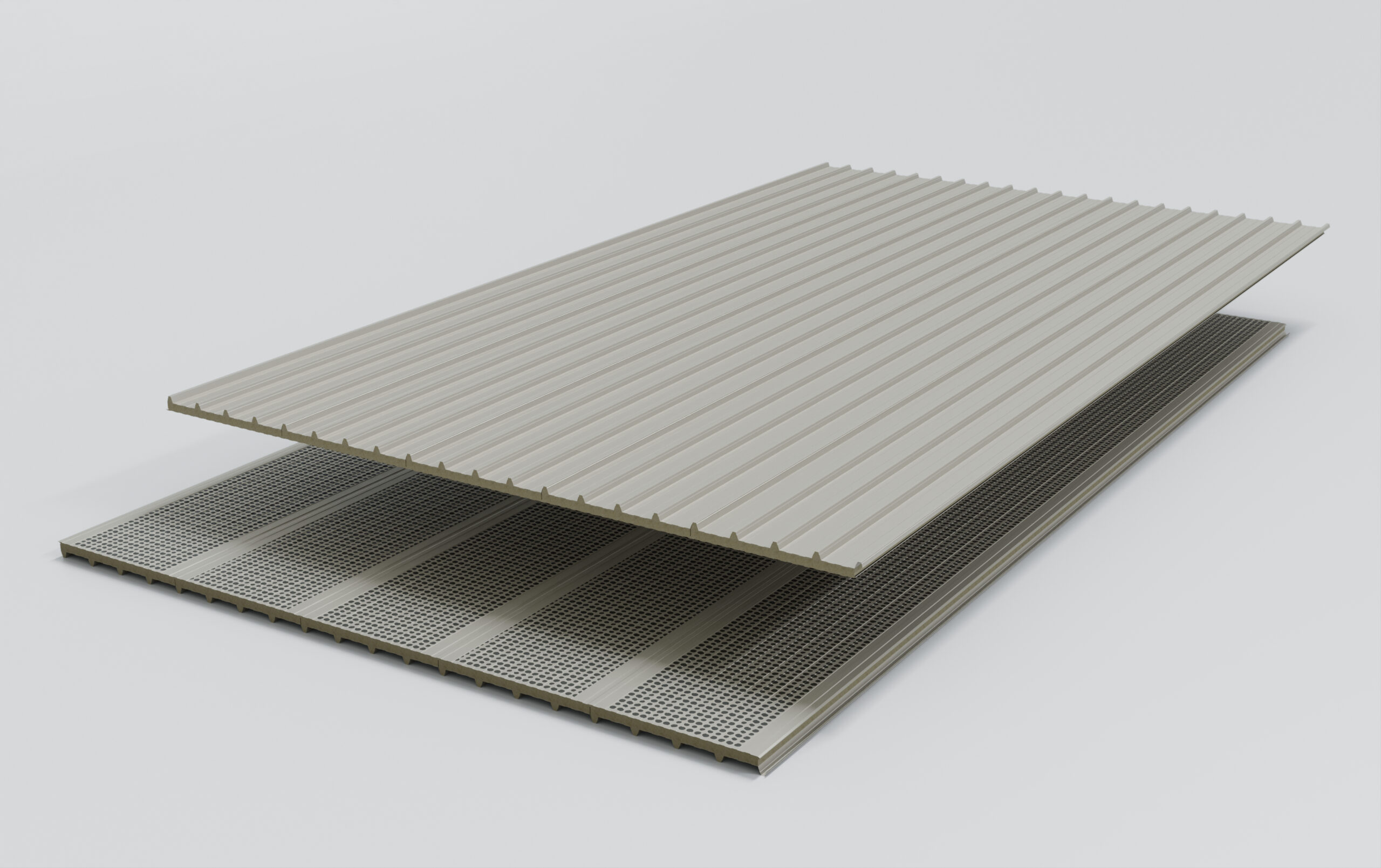

Featuring a solid steel outer sheet, perforated internal liner and Rockwool core at 100 kg/m³, the VR panel achieves Rw 33 at 50mm and sound absorption up to αw 1.0. Full performance data available on request.

The VR panel’s wide-span roof design makes it suitable for industrial facilities, plant enclosures, and infrastructure projects where environmental protection is required.

Product Properties Test Data Technical Information

  • Product name:

    AcousTech Sonic System acoustic modular panel VR

  • Construction:

    Self-supporting structural roof panel (50–200mm) with Rockwool core at 100 kg/m³

  • Finish:

    Factory-applied primer and painted finish, available in pre-finished ‘off-white’ or custom colour

  • Acoustic performance:

    Rw 33 at 50mm, determined to ISO 717-1 | αw up to 1.0 at 50mm, to ISO 354. Full performance data available on request.

  • Thermal transmittance:

    0.76 W/m²K (50mm) to 0.20 W/m²K (200mm), to UNI EN 14509 A.10

Load bearing capacity table
Thickness (mm) Weight (kg/m²) 150 200 250 300 350 400 450 500
Maximum allowable load P (kg/m²) at support centres (cm)
50 14.2 215 160 125 90 60 – – –
60 15.2 245 180 140 110 90 50 – –
80 17.2 295 215 170 140 120 85 65 50
100 19.2 330 240 190 160 130 100 85 65
120 21.2 345 255 200 165 135 120 100 90
150 24.2 350 260 205 170 140 125 105 95
200 29.2 365 265 210 175 145 130 110 100

Full performance data available on request.

Thermal performance
Panel Thickness (mm) Thermal Transmittance U (W/m²K)
UNI EN 14509 A.10
50 0.76
60 0.64
80 0.49
100 0.39
120 0.33
150 0.27
200 0.20
