Sonic System acoustic modular panel-V50

The Sonic System acoustic modular panel V50 is engineered to control airborne noise through a combination of sound absorption and sound attenuation, making it suitable for industrial environments where reverberation control and moderate noise reduction are required.

Featuring a 50mm Rockwool core with a perforated internal steel face (38% open area) and solid external skin, the V50 delivers strong mid- to high-frequency absorption while maintaining effective barrier performance. Sound absorption is measured to AS ISO 354 and airborne sound transmission loss to AS 1191-2002, with Rw determined to AS/NZS ISO 717.1. The panel achieves NRC 1.00 and Rw (C;Ctr) 31 (−1;−5), with transmission loss reaching 52.1 dB at 5000 Hz.

Product Properties Test Data Technical Information

  • Product name:

    AcousTech Sonic System acoustic modular panel V50

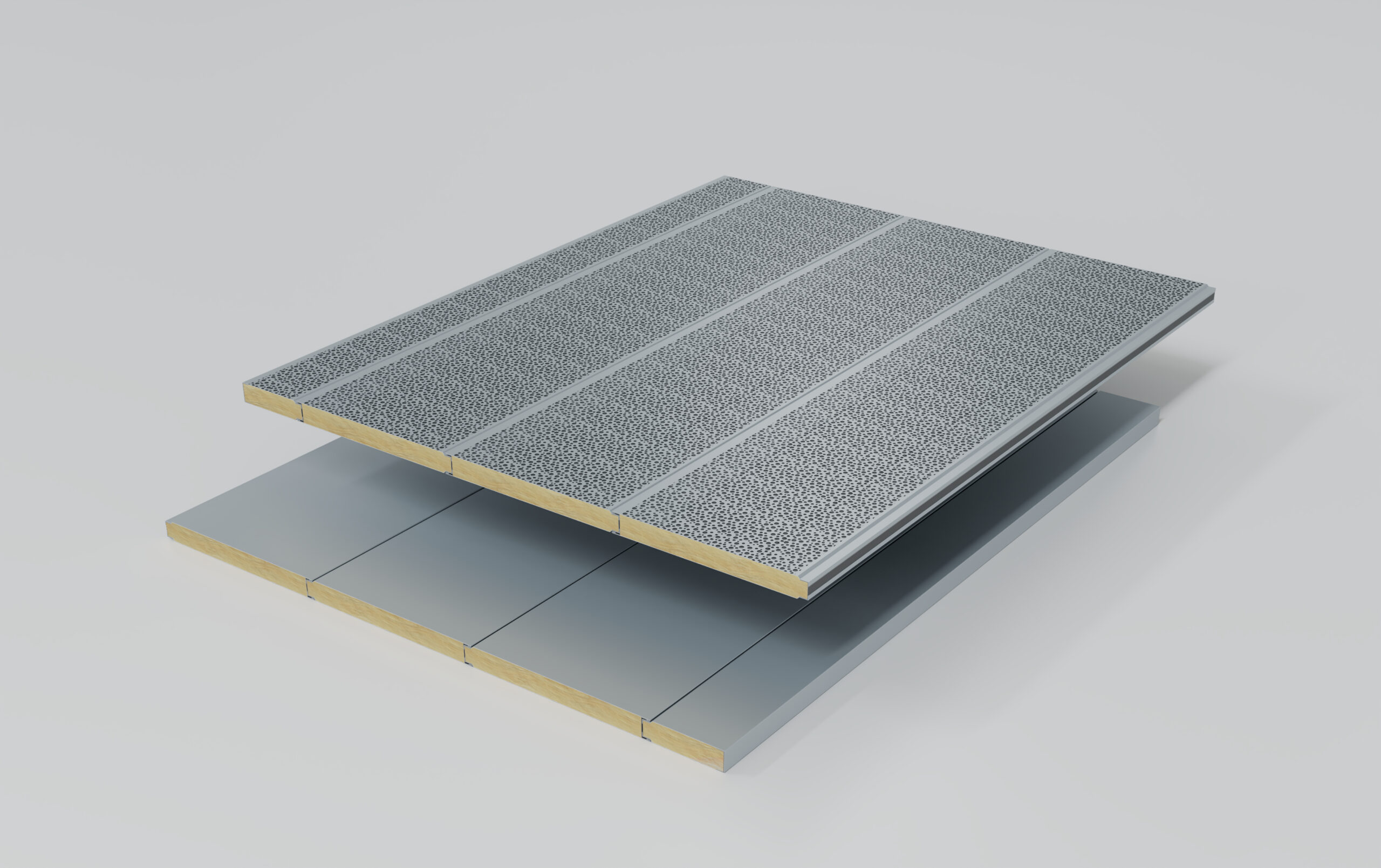

  • Construction:

    50mm acoustic panel with perforated internal steel face at 38% open area, Rockwool core at 70 kg/m³, and solid external steel face

  • Finish:

    Pre-painted steel: perforated internal face, solid external face, pre-finished ‘off-white’ or custom colour

  • Acoustic performance:

    Rw (C;Ctr) 31 (−1;−5) dB determined to AS/NZS ISO 717.1 | NRC 1.00

  • Fire resistance:

    FRL -/120/- to AS 1530.4-2014

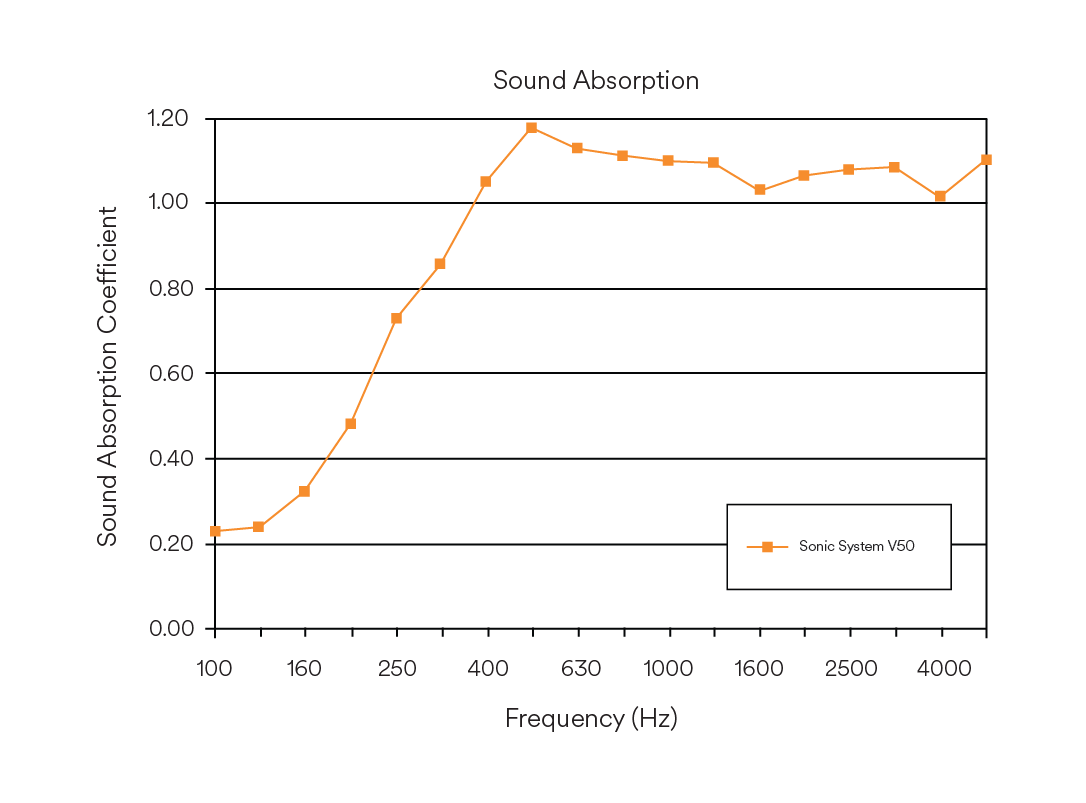

Absorption
1/3 Octave Centre Frequency, Hz Average RT for empty room, T60e Average RT for room with sample, T60e+s Sound Absorption Coefficient αs 95% Confidence Interval for αs
100 7.145 5.963 0.23 0.13
125 6.508 5.467 0.24 0.11
160 8.395 6.319 0.32 0.11
200 9.319 6.008 0.48 0.09
250 9.351 5.094 0.73 0.06
315 7.830 4.296 0.86 0.06
400 7.055 3.698 1.05 0.07
500 6.682 3.400 1.18 0.06
630 6.299 3.365 1.13 0.06
800 6.210 3.359 1.11 0.06
1000 5.589 3.189 1.10 0.06
1250 5.122 3.032 1.10 0.04
1600 4.550 2.891 1.03 0.04
2000 4.085 2.663 1.06 0.05
2500 3.622 2.449 1.08 0.03
3150 3.121 2.204 1.08 0.06
4000 2.576 1.951 1.01 0.08
5000 2.193 1.692 1.10 0.16

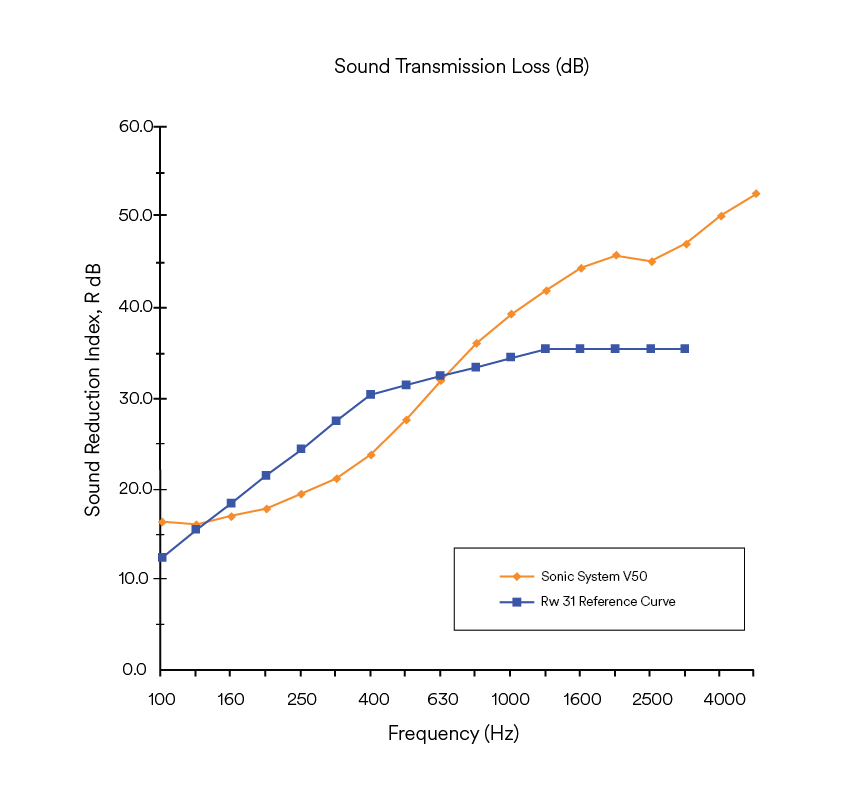

Sound transmission loss
1/3 Octave Centre Frequency Hz Sound Transmission Loss: R dB Rw 31 Reference Curve 95% Confidence levels, dB
100 15.9 12 2.7
125 15.7 15 2.0
160 16.6 18 1.7
200 17.4 21 1.6
250 19.0 24 1.2
315 20.8 27 1.4
400 23.4 30 0.6
500 27.3 31 0.7
630 31.6 32 0.6
800 35.6 33 0.7
1000 38.8 34 0.6
1250 41.6 35 0.5
1600 44.0 35 0.6
2000 45.4 35 0.6
2500 44.7 35 0.6
3150 46.6 35 0.6
4000 49.7 – 0.7
5000 52.1 – 0.9



Wind load
Panel Support Centres (m) Maximum Ultimate Wind Load Pressure (kPa)
0.9m 6.0 kPa
1.2m 6.0 kPa
1.5m 6.0 kPa
1.8m 4.3 kPa
2.1m 3.1 kPa
2.4m 2.4 kPa
2.7m 1.9 kPa

Ultimate wind load pressures to AS/NZS 1170.2. Minimum 100×6.0 SHS required at each end of a panel assembly. Vertical weight support at maximum 4.0 m centres. Not applicable to cyclonic wind regions. Load test data and engineering assessment available on request.
