Sonic System acoustic modular panel-V100

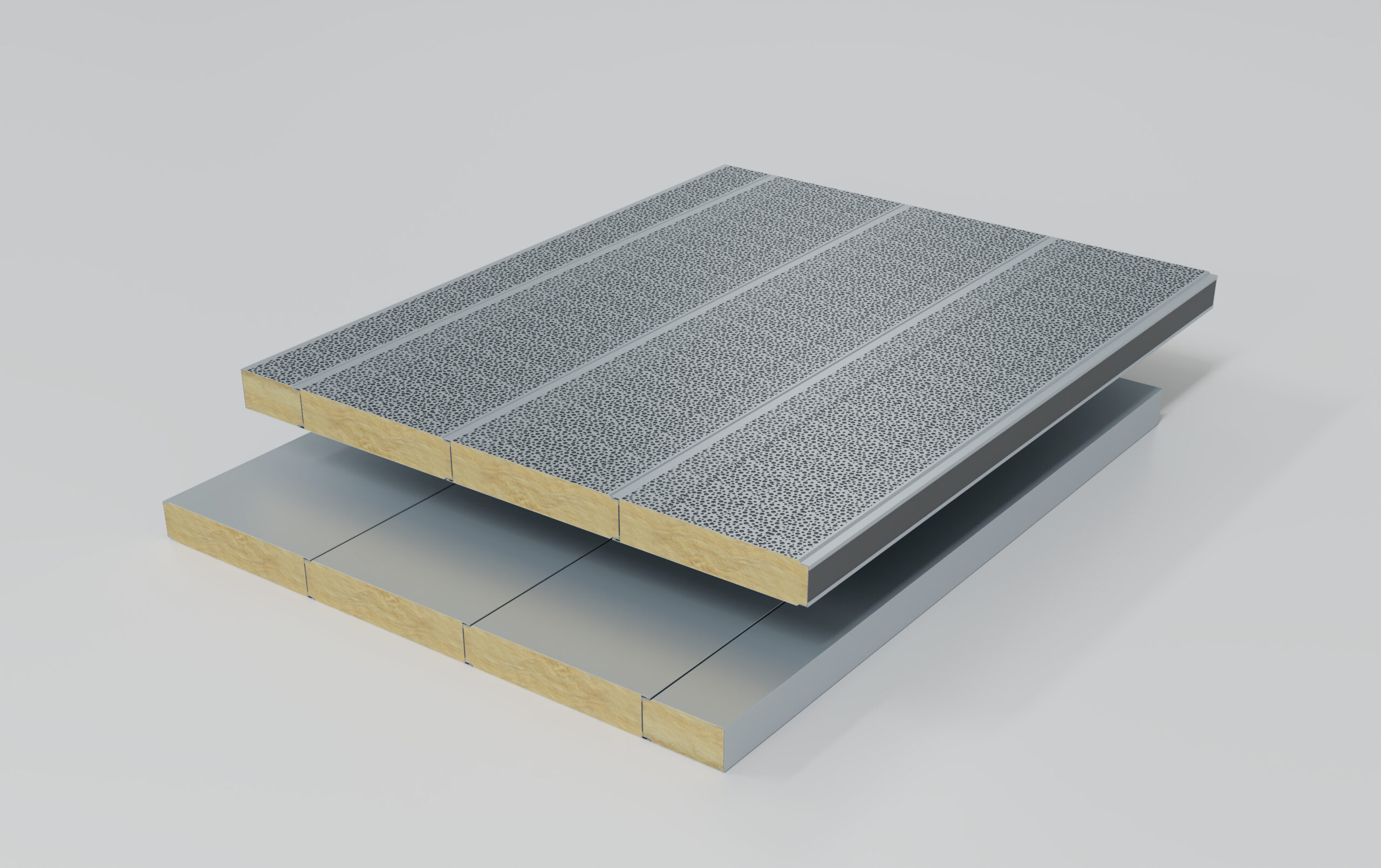

The Sonic System acoustic modular panel V100 is a high-performance sandwich panel engineered for combined sound absorption and sound insulation in demanding industrial environments.

With a 100mm Rockwool core, perforated internal steel face (38% open area), and solid external skin, the V100 provides enhanced acoustic control across a wide frequency range. Tested in accordance with AS ISO 354 and AS/NZS 1191, with Rw determined to AS/NZS ISO 717.1, the panel achieves NRC 1.10 and Rw 37, with transmission loss reaching 54dB at 5000 Hz.

The V100 is structurally engineered in accordance with AS 1170.2 wind loading requirements and is suitable for large-span acoustic enclosures, industrial walls, and external noise barriers where higher levels of noise reduction are required.

Product Properties Test Data Technical Information

  • Product name:

    AcousTech Sonic System acoustic modular panel V100

  • Construction:

    100mm acoustic panel with solid steel faces, perforated internal face and high-density Rockwool core

  • Finish:

    Corrosion-resistant perforated steel

  • Acoustic performance:

    Rw 37dB determined in accordance with AS/NZS ISO 717.1, NRC 1.10

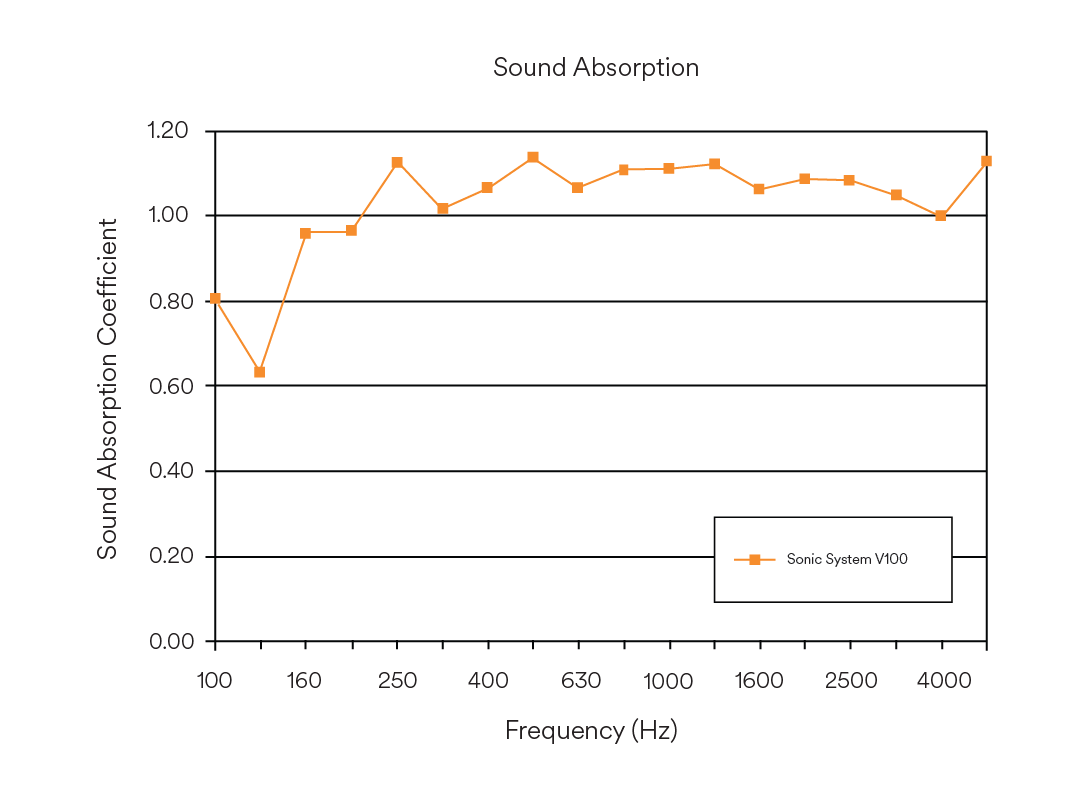

Absorption
Octave Centre Frequency Bands, Hz Average RT’s for empty room. T60e Average RT’s for room with sample T60e+s Sound Absorption Coefficient ⍺s 95% Confidence Interval for ⍺s
100 7.145 4.183 0.81 0.15
125 6.508 4.321 0.63 0.16
160 8.395 4.222 0.96 0.11
200 9.319 4.429 0.96 0.09
250 9.351 4.074 1.13 0.07
315 7.830 3.955 1.02 0.08
400 7.055 3.661 1.07 0.08
500 6.682 3.455 1.14 0.05
630 6.299 3.448 1.07 0.06
800 6.210 3.365 1.11 0.07
1000 5.589 3.170 1.11 0.06
1250 5.122 3.003 1.12 0.04
1600 4.550 2.851 1.06 0.05
2000 4.085 2.636 1.09 0.05
2500 3.622 2.434 1.08 0.05
3150 3.121 2.210 1.05 0.05
4000 2.576 1.940 1.00 0.08
5000 2.193 1.661 1.13 0.12



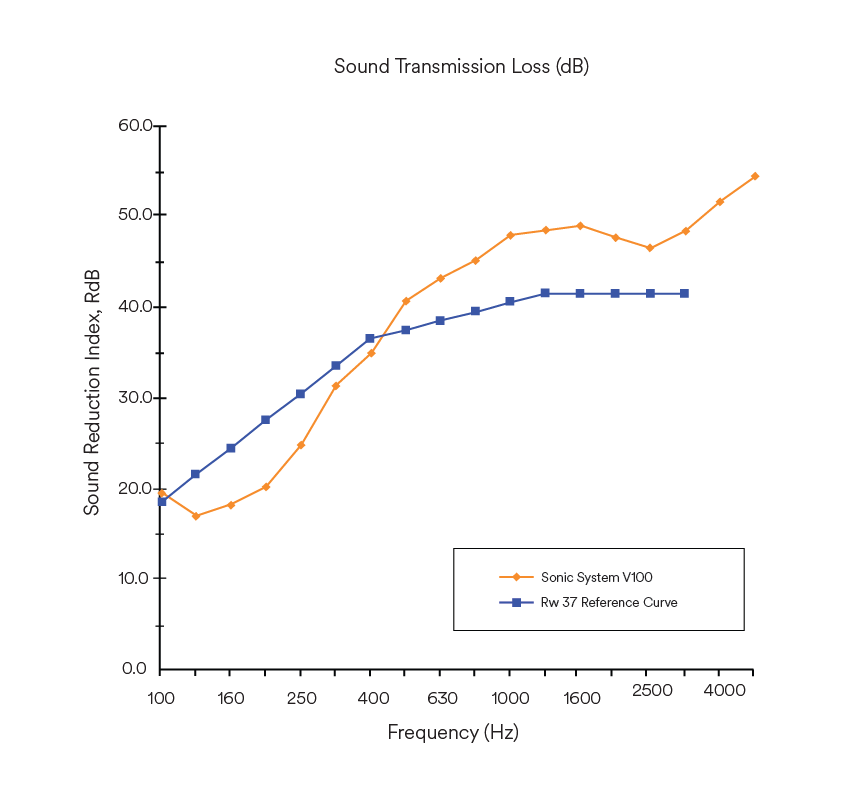

Sound transmission loss
1/3 Octave Centre Frequency Hz Sound Transmission Loss: R dB Rw 31 Reference Curve 95% Confidence levels, dB
100 19.1 18 2.5
125 16.5 21 2.3
160 17.7 24 2.1
200 19.7 27 1.5
250 24.4 30 1.3
315 30.9 33 1.4
400 34.5 36 1.2
500 40.2 37 0.8
630 42.7 38 0.7
800 44.7 39 0.7
1000 47.5 40 0.7
1250 48.0 41 0.4
1600 48.6 41 0.6
2000 47.2 41 0.8
2500 46.0 41 0.6
3150 48.0 41 0.7
4000 51.3 – 0.7
5000 54.0 – 0.5



Loading pressure
Panel Support Centres (m) Maximum Ultimate Wind Load Pressure (kPa)
4.0m 2.58 kPa
4.5m 2.04 kPa
5.0m 1.65 kPa
5.5m 1.36 kPa
6.0m 1.15 kPa
