Sonic System Acoustic Modular Soundproofing Panels

Maximum noise control for industrial settings

Let’s talk
Home > AcousTech Products > Sonic System Acoustic Modular Panels

Premium noise control

with up to Rw 47 dB sound insulation and superior absorption

Its modular, heavy-duty design features perforated steel for optimal performance. Independently tested to AS/NZS standards, it ensures durability and compliance, making it the ultimate solution for industrial and commercial noise reduction.

Let’s Talk

Sonic System
Acoustic
Modular Panel
Performance

The Sonic System acoustic modular panel delivers outstanding acoustic performance in sound absorption and transmission loss, making it an ideal solution for factories, workshops, machine enclosures, and high-noise industrial settings.

  • High absorption coefficients ensure sound is trapped and dissipated, reducing echo and reverberation.
  • Effective noise attenuation blocks unwanted noise from spreading into surrounding areas.
Let’s talk

Key Benefits

  • High Sound Insulation

    Achieves up to Rw 47 dB, significantly reducing noise transmission.

  • Superior Sound Absorption

    Features a perforated steel face to enhance sound absorption across frequencies.

  • Modular Design

    Panels interlock seamlessly for customised noise control solutions.

  • Heavy-Duty Construction

    Built with painted steel sheets and dense acoustic infill, ensuring durability.

  • Independently Tested & Certified

    Compliant with AS/NZS ISO 717.1-2004 and AS ISO 354-2006.

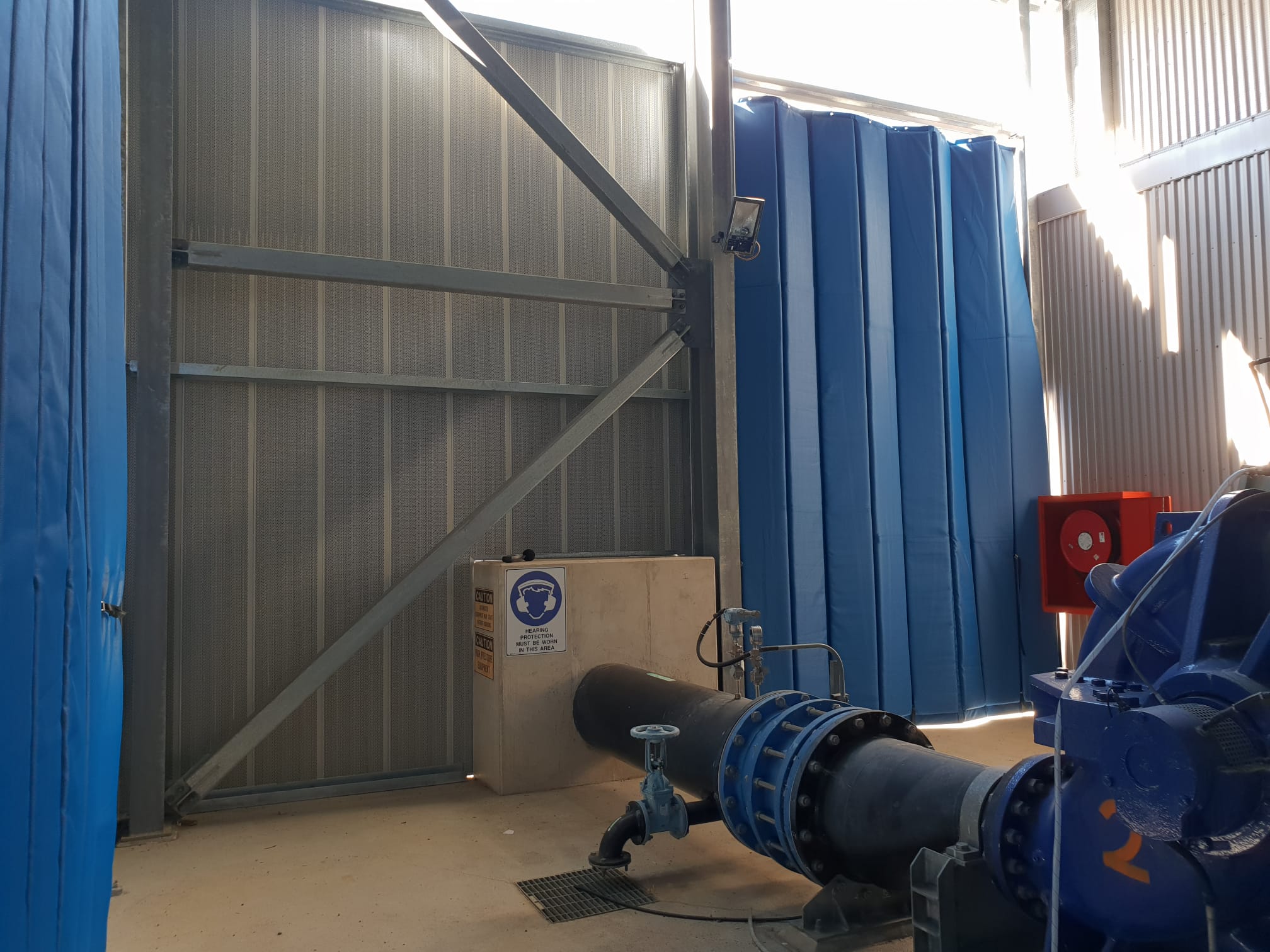

Photo & Video Gallery

  • Sonic System Acoustic Modular Panel Construction

    The Sonic System Acoustic Modular Panel is engineered with multi-layered materials to maximise soundproofing while maintaining structural integrity.

    • Exterior: Perforated steel on one side, solid steel on the other, optimising both absorption and reflection.
    • Core Material: High-density rockwool infill, designed to capture sound waves and minimise noise transmission.
    • Thickness Options: Available in 51mm, 52mm, and 100mm variants, offering different levels of noise reduction.
    • Modular Assembly: Panels interlock using male-female U-shaped joints, ensuring a seamless noise barrier.
    Thickness standard sizes 50mm & 100mm – other sizes are available
    Material Perforated Steel, Rockwool, Steel Sheet sandwich panel
    Accessories Channels, flashings and furring’s
    Panel finish Corrosion resistant coating
    Wind load testing Wind loads are ultimate wind load pressures in accordance with AS1170.2
    Weatherproof Yes
    Modular Tongue and Groove
    Colour Dulux Grey Nurse, other colours available on request

  • Testing and Compliance

    The Sonic System acoustic modular panel has been independently tested at RMIT University’s Acoustics Laboratory and Istituto Giordano (Italy), ensuring compliance with leading acoustic standards:

    • AS/NZS ISO 717.1-2004 – Airborne sound insulation in buildings.
    • AS ISO 354-2006 – Sound absorption measurement in a reverberation room.
    • UNI EN ISO 140-3:1997 & UNI EN ISO 717-1:1997 – International soundproofing standards

  • How to Specify

    When ordering our acoustic panels, it’s crucial to consider the following specifications to ensure you get the best panels that meet your project requirements:

    • Acoustic Panel type: ________
    • The panel should have the following features:
    • It should be constructed with a pre-finished steel and rock wool sandwich panel that is _____mm thick.
    • It should be coloured in Dulux ‘grey nurse’.
    • All external faces of the panel should be perforated steel with 37% FOA, random pitch, and hole size.
    • The internal part of the panel should be approved and tested acoustic-rated Rockwool with a density of 70kg per m3
    • The panels should have an anti-corrosive treatment of epoxy primer and paint.
    • Sandwich panels should be capped in a 2mm steel channel finished in ‘galvabond’ or coated to the customer’s colour choice.
    • The sandwich panel should have an acoustic rating of Rw_______, NRC________, and Sound
    • Transmission Loss per frequency band, as per the below.

    By following these specifications, you can ensure a seamless experience and optimal results that meet your needs.

    Supply and Installation

    Our acoustic modular panels are available as straight panel supply or can be custom-cut to your requirements. We also provide a complete range of capping channels, flashings, and fixings.

  • Sonic System Acoustic Modular Panel Test Results

    Product Name NRC Rw(dB) Internal steel sheet (mm) External steel sheet (mm) Insulated Core Thick (mm) Weight (kgm2) Transmitt (W/m2K) Width Length
    Sonic System acoustic modular   panel – V50 1.0 31 0.50 0.70 mineral wool 50 15.6 0.70 450 mm any length up to 5700   mm
    Sonic System acoustic modular   panel – V100 1.1 37 0.50 0.70 100 20.9 0.35
    Sonic System acoustic modular   panel – V100SP 1.0 47 0.50 1.00 100 46.0 0.38
    Sonic System acoustic modular   panel – V225 0.8 24 0.50 0.50 50 20.1 0.77
    Sonic System acoustic modular   panel – VA50 0.9 – 0.50 – 50 6.2 0.70
Bringing silences to these brands

Case Studies

    • Creating an Innovative Solution to Address Noise Challenges

      Client
      Pensar Water Pty Ltd
      Products
      • Noise Control Solution for McGees Property by Flexshield

        Client
        McGees Property
        Products
      • Noise wall for Gold Coast Pistol Club
          Pistol Club Noise Reduced Thanks to Custom Sound Absorption

          Client
          Gold Coast Pistol Club
          Products
          • Bundaberg TAFE enjoys new acoustic welding bay solution from Flexshield

            Client
            Bundaberg TAFE
            Products

          Resources

          All Resources
          • Australia’s Leading Modular Soundproofing Solution
            Learn More
          • Sonic System Acoustic Modular Panels
            Learn More

          Frequently Asked Questions

          • For more information about Sonic System Panels or to request a customised quote, please get in touch with us directly. Our team will happily assist you with your soundproofing needs and provide expert guidance tailored to your project requirements.

          • Yes, Sonic System Panels are designed for easy disassembly and reassembly, allowing for flexibility in layout and configuration. They can be moved or rearranged as needed without compromising their performance.

          • With accredited test results showcasing their superior Noise Transmission Loss and Noise Absorption capabilities, Sonic System Acoustic Panels deliver exceptional acoustic performance, creating quieter and more comfortable spaces.

          • Yes, Sonic System Panels are weatherproof, ensuring durability and longevity even in challenging environmental conditions.

          • Sonic System Acoustic Panels feature a modular tongue and groove style, allowing quick and hassle-free installation. They can be easily clipped together to cover large areas efficiently.

          • Absolutely! Sonic System Acoustic Panels can be conveniently cut to fit your application size and requirements. Whether you need specific dimensions, colours, or additional features, customisation options are available.

          • Yes, Sonic System Panels are fireproof and combustion-resistant, making them suitable for industrial environments where fire safety concerns them.

          • Sonic System Acoustic Panels are ideal for various applications, including soundproof enclosures, engine test cells, dyno booths, and generator enclosures. They can easily be tailored to fit specific project requirements.

          • Unlike traditional methods, such as heavy construction or foam insulation, Sonic System Acoustic Panels offer a lightweight and modular solution. They are easy to install, highly adaptable, and provide excellent acoustic performance.

          • Sonic System Acoustic Modular Panels are prefabricated soundproofing panels designed to minimise noise transmission and absorption. They offer versatile solutions for various applications, ensuring quieter environments.
